Transforaminal Lumbar Interbody Fusion: Surgeon Driven Product Design

Porous titanium has been implanted over 300,000 times across various orthopedic specialties, significantly contributing to spine innovation. Use Logic™ Titanium with Osteosync™ Ti for advanced solutions in lumbar fusion and spine surgery.

Why compromise graft volume?

The TLIF graft area spans 200㎠ from endplate to endplate, representing a pivotal aspect of lumbar fusion in advanced spine surgery. Utilize the innovative Use Logic™ Titanium with Osteosync™ Ti to enhance the outcomes of spine innovation.

Why compromise graft density?

A TLIF that compacts contralateral graft as the implant expands laterally contributes to advanced lumbar fusion techniques in spine surgery. Elevate your approach with Use Logic™ Titanium featuring Osteosync™ Ti for innovative spine innovation.

Why compromise ease of use and bone graft quality?

A TLIF with an 8x10mm opening for post-packing graft is a significant advancement in lumbar fusion. Use Logic™ Titanium with Osteosync™ Ti to enhance outcomes in spine surgery.

Why compromise ingrowth area?

An expandable TLIF designed for lumbar fusion, featuring continuous porous titanium from top to bottom. Experience the benefits of Logic™ Titanium with Osteosync™ Ti, a true testament to spine innovation in modern spine surgery.

About Spine Innovation

3D human spine highlighted in red within blue skeletal structure.

Spine Innovation was formed to develop an innovative, expandable lumbar fusion implant that aims to restore disc height and sagittal balance while ensuring a large graft volume for fusion, all achieved with minimal insertion height for safe transforaminal implantation.

Our products result from a collaboration between talented engineers and three surgeon inventors from Scripps Health in San Diego, CA, who are dedicated to advancing spine surgery techniques.

The LOGIC™ Titanium Expandable Interbody System, a notable TLIF product, has demonstrated successful usage in the U.S. with follow-ups extending up to 9 years. Recently, our LOGIC Titanium, a sterile packed, porous titanium implant, received FDA 510(k) clearance and is now available for sale in the U.S.

LOGIC Titanium is crafted with OsteoSync™ Ti porous titanium, combining all the advantages of the original PEEK implant along with a streamlined instrument system, tailored for efficient lumbar fusion procedures.

Spine Innovation, LLC is actively seeking U.S. commercial sales and distribution partners to broaden the clinical use of our LOGIC Titanium implant, enhancing spine surgery options for patients.

Why OsteoSync™ Ti?

LOGIC™ Titanium, developed by Spine Innovation, is crafted using OsteoSync™ Ti porous titanium, featuring 60% porosity along with an average pore size of 523μm and an interconnected average pore size of 229 μm. These macro-scale characteristics are ideal for significant bone ingrowth, making it particularly beneficial for lumbar fusion procedures. OsteoSync™ Ti has demonstrated potential for quicker healing times and enhances implant osseointegration [1], providing a high coefficient of friction that is crucial for initial implant stability—key for long-term success in spine surgery.

For more detailed information on OsteoSync™ Ti, please visit the SITES Medical website at www.sitesmedical.com or contact us for further insights.

A colorful sunset over a calm ocean with silhouettes of palm trees in the foreground.

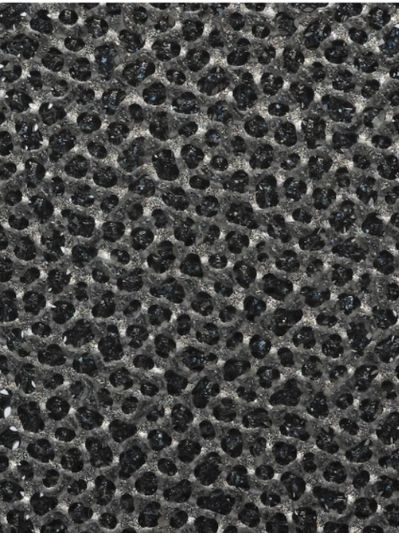

Photo of OsteoSync™ Ti used in the

LOGIC Expandable Interbody System.

Meet the Team

Portrait of a smiling man in a white coat and red tie.

Robert Eastlack, MD

Dr. Eastlack is an orthopedic surgeon and spine specialist at Scripps Healthcare in San Diego, focusing on conditions of the neck and back. His areas of expertise include artificial cervical disc replacement surgery, lumbar fusion, minimally invasive spine procedures, and spine innovation in complex spinal reconstructions.

Maneesh Bawa, MD

Robert Eastlack, MD

Dr. Bawa is an orthopedic surgeon at Scripps Healthcare in San Diego who specializes in spine surgery, including cervical artificial disc replacement and complex reconstructive spine surgery. His expertise also covers cervical spine surgery, lumbar fusion, eXtreme Lateral Interbody Fusion (XILF), motion preserving surgery, and innovative

Show Less

Portrait of a smiling doctor in a white coat.

James Bruffey, MD

Robert Eastlack, MD

Jude Paganelli, Director

Dr. Bruffey is an orthopedic surgeon at Scripps Healthcare in San Diego, specializing in the treatment of various diseases of the musculoskeletal system, including conditions like lumbar herniation, scoliosis, and other spinal disorders. His practice emphasizes spine innovation through minimally invasive techniques for spine surgery, such

Show Less

Portrait of a middle-aged man with gray hair and a mustache.

Jude Paganelli, Director

Morris Bernstein , Marketing Consultant

Jude Paganelli, Director

Jude is the Chief Technology Officer at Osteal Therapeutics and a serial entrepreneur in orthopedics and spine innovation, boasting 40 years of experience in lumbar fusion and spine surgery. His extensive background includes roles at N Spine, Responsive Orthopedics, Cor Medical Ventures, and various start-ups, as well as at major companie

Show Less

Morris Bernstein , Marketing Consultant

Morris has 35 years of experience in medical device sales and management, with over 20 years dedicated to spine surgery and lumbar fusion at leading companies such as Synthes, SpineSource, and Centinel Spine, contributing to spine innovation in the field.

Bruce Anderson, PhD

Morris Bernstein , Marketing Consultant

Bruce is an experienced medtech investor with a focus on orthopedic and spine innovation, particularly in areas like lumbar fusion and spine surgery. He serves as a Principal Consultant to four Medtech companies and holds board positions at three others.

OUR Product

LOGIC™ TITANIUM Expandable Interbody

The transforaminal approach with an 8mm insertion height effectively supports lumbar fusion by restoring disc height and lordosis, achieving a range of 10-14mm in height and 5-15 degrees in angle. This technique features a large, stable footprint on the apophyseal ring measuring 18 x 26 mm. Additionally, it allows for a maximum bone graft volume with a 10mm x 26mm graft window, while the expansion packs contribute to the stability of the contralateral bone graft. Backed by nine years of clinical experience, this innovation in spine surgery is manufactured using OsteoSync™ Ti porous titanium for optimal performance.

How the Spine Innovation Interbody System works

The LOGIC™ Titanium Expandable Interbody is inserted on its side to minimize the risk of neural injury during spine surgery and is easily rotated 90 degrees in its closed configuration to restore disc height up to 14 mm and lordosis up to 15 degrees. This innovative device, designed for lumbar fusion, is then expanded 10 mm laterally to create an implant width of 18 mm, featuring a large 10x26 mm graft area that is directly accessible by the surgeon for the placement of bone graft in the device. Additional bone graft placed contralaterally before implantation is further compacted by the implant's expansion, enabling a total of 15-20 mL of bone graft placement per fusion level.

This spine innovation increases the implant profile in height, lordotic angle, and footprint in situ. The bone graft window and filling aperture are among the largest of all expandable TLIF devices available today. Additionally, implant stability and resistance to subsidence and expulsion are maximized by the lateral expansion of the device.

RECENT NEWS

Spine Innovation Announces FDA 510(k) Clearance for LOGIC™ Titanium Expandable Interbody System

Coronado, CA, January 26, 2026 - Spine Innovation, LLC, a pioneering medical device startup focused on advancing spine surgery, announced today that it has received FDA 510(k) clearance to market the LOGIC™ Titanium Implant System for lumbar fusion procedures.

The LOGIC™ Implant System represents the next generation of lumbar fusion technology, incorporating OsteoSync™ Ti – a patented, commercially pure titanium lattice material from Sites Medical. This innovative implant has already been successfully implanted in over 250,000 patients since 2014.

Designed with a reduced profile for easy implantation, the patented LOGIC™ implant expands more than doubling in size to ensure maximum stability and optimal bone graft volume. With a successful track record in the U.S. for 10 years, this implant, previously made from polyether ether ketone (PEEK), now leverages the benefits of OsteoSync™ Ti. It effectively restores disc height and sagittal balance while preventing subsidence and expulsion, thanks to an 18 mm x 26 mm expanded footprint that spans the vertebral body.

More Info

For more information, please visit our LinkedIn page by clicking on the button below. For product inquiries, please contact Jude Paganelli at judepaganelli@gmail.com.

View our LinkedIn Page

Patents

Spine Innovation holds 3 U.S. patents and 1 European patent on the LOGIC™ Titanium expandable implan

1. US 10,265,192 B2 - A key patent relevant to lumbar fusion.

2. US 10,512,551 B2 - Advances in spine innovation specifically for spinal procedures.

3. US 11,491,026 B2 - Focused on enhancing techniques in spine surgery.

4. EP 3 016 617 B1 - Significant contributions to the field of spine innovation.

We also hold 3 U.S. patents for a novel, disposable retractor to protect neural elements:

Spine Innovation holds 3 U.S. patents and 1 European patent on the LOGIC™ Titanium expandable implan

1. US 9,408,721 B2 - A patent related to advancements in lumbar fusion techniques.

2. US 9,901,464 B2 - This document focuses on innovations in spine surgery methods.

3. US 11,497,624 B2 - A significant contribution to spine innovation and effective lumbar fusion solutions.

Transforaminal Lumbar Interbody Fusion: Surgeon Driven Product Design

Why compromise graft volume?

Why compromise graft density?

Why compromise ease of use and bone graft quality?

Why compromise ingrowth area?

About Spine Innovation

Why OsteoSync™ Ti?

Meet the Team

Robert Eastlack, MD

Robert Eastlack, MD

Robert Eastlack, MD

Maneesh Bawa, MD

Robert Eastlack, MD

Robert Eastlack, MD

James Bruffey, MD

Robert Eastlack, MD

Jude Paganelli, Director

Jude Paganelli, Director

Morris Bernstein , Marketing Consultant

Jude Paganelli, Director

Morris Bernstein , Marketing Consultant

Morris Bernstein , Marketing Consultant

Morris Bernstein , Marketing Consultant

Bruce Anderson, PhD

Morris Bernstein , Marketing Consultant

Morris Bernstein , Marketing Consultant

OUR Product

LOGIC™ TITANIUM Expandable Interbody

How the Spine Innovation Interbody System works

EASY to Use

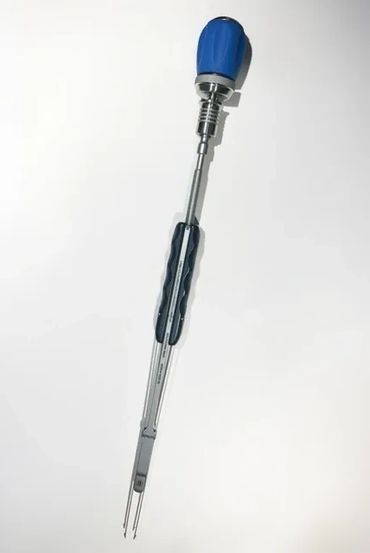

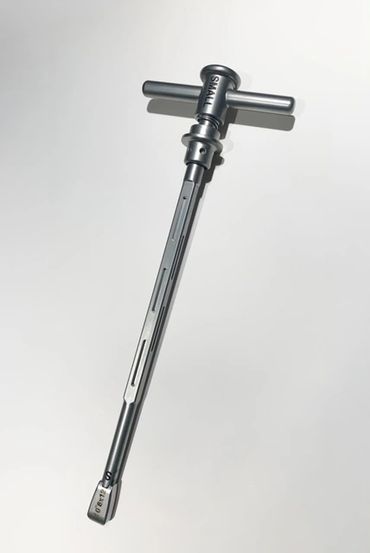

LOGIC™ Titanium Expandable Interbody System Instrument Set
